30Mpa Graphite Melting Crucible Corrosion Resistance

Certification
China Qingdao Jiacheng Graphite Products Co., Ltd. certification
I'm Online Chat Now

30Mpa Graphite Melting Crucible Corrosion Resistance

30Mpa Graphite Melting Crucible Corrosion Resistance
30Mpa Graphite Melting Crucible Corrosion Resistance 30Mpa Graphite Melting Crucible Corrosion Resistance

Large Image :  30Mpa Graphite Melting Crucible Corrosion Resistance

Product Details:
Place of Origin: Qingdao
Brand Name: JC
Certification: JC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box and vacuum packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50000PC

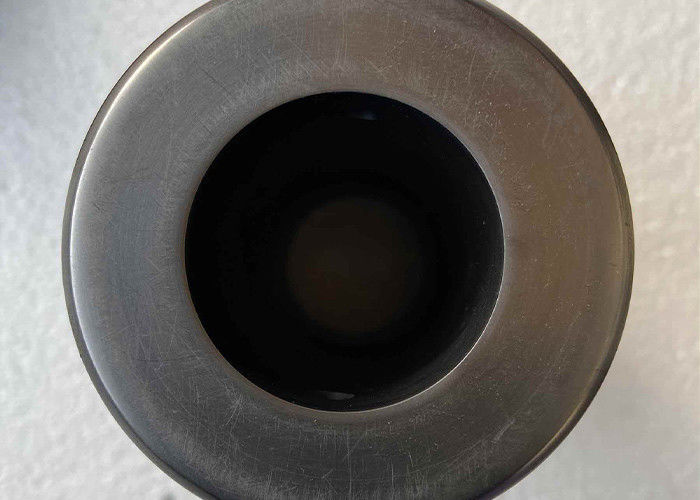

30Mpa Graphite Melting Crucible Corrosion Resistance

Description
Material: Chinese Size: Customized
Package: Wooden Box And Vacuum Packing Deliver Time: 5-8 Work Days
Port: Qingdao Port Composition: High Pure
Application: Metallurgy Industry Brand: JC
High Light:

30Mpa graphite melting crucible

,

30Mpa crucible for melting brass

,

graphite melting crucible

Customized Shape High Purity High Temperature Graphite Crucible

Product details :

Graphite crucible is a utensil or melting tank vessels which use graphite powder and clay as main raw material, made through pressing in different molds and firing process.



Customized Shape High Purity High Temperature Graphite Crucible Advantages:

  • High strength (Flexural strength: 30Mpa Compressive strength: 55Mpa with rising of temperature, graphite strength increases)
  • High temperature resistance (graphite material melting point is 3850±50C)
  • Good heat shock resistance
  • Anti-oxidation,
  • Strong corrosion resistance to acid and alkali liquid
  • Abrasion resistance,
  • Good conductivity and thermal efficiency.
  • Excellent chemical stability
  • Small thermal expansion coefficient.
  • Easy to clean


Customized Shape High Purity High Temperature Graphite Crucible Application:

Graphite crucible, with its special advantages and Plasticity, is widely used in the smelting area, e.g. gold smelting, silver smelting, aluminum smelting, and cooper smelting in metallurgy, casting, machinery, chemical and other industries.



Customized Shape High Purity High Temperature Graphite Crucible Materials:

Typical property Data JC-Molded graphite
Properties Unit



Numerical value

Bulk Density



g/cm3

1.83
Specific Resistance



μΩ-m

15
Ash Content  ppm 50
Porosity % 17
Compressive Strength Mpa 72.6

























*Value might be changed due to material size
**Ash value according to purity specifications



Graphite advantages:

Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.

1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient



Production environment :

30Mpa Graphite Melting Crucible Corrosion Resistance 0

30Mpa Graphite Melting Crucible Corrosion Resistance 1

30Mpa Graphite Melting Crucible Corrosion Resistance 2

30Mpa Graphite Melting Crucible Corrosion Resistance 3

30Mpa Graphite Melting Crucible Corrosion Resistance 4

30Mpa Graphite Melting Crucible Corrosion Resistance 5

30Mpa Graphite Melting Crucible Corrosion Resistance 6

Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
