Product Details:
|
| Material: | Graphite | Porosity (%): | Normal |
|---|---|---|---|
| Size: | Customized | Application: | Metallurgy Industry |
| Product Name: | High Purity Graphite,Graphite Rod | Dimensions: | Customize Production,Specification |
| Package: | Wooden Box And Vacuum Packing | Deliver Time: | 5-8 Work Days |
| Port: | Qingdao | Shape: | Customized |
| Color: | Black | Brand: | JC |
| High Light: | 72.6Mpa Graphite Moulds,0.8mm silver graphite molds,0.8mm Graphite Moulds |
||

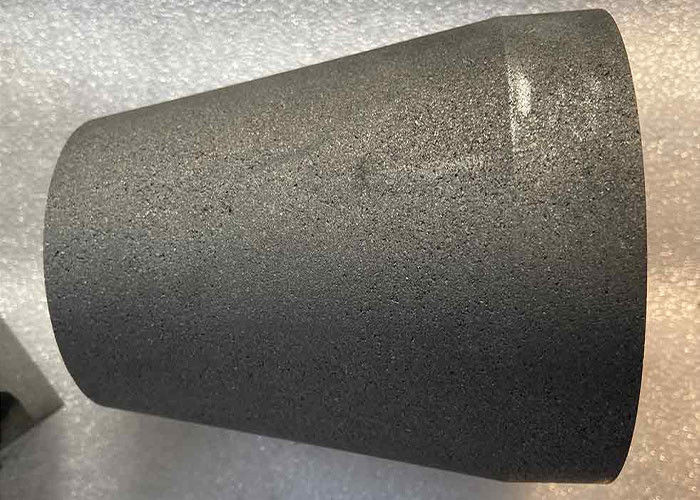

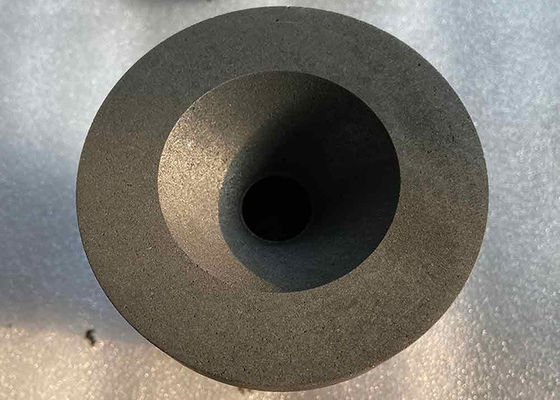

Custom Silver Molds Quality High Graphite Mould Carbon Graphite Frame
Product details:
Graphite components are critical to the process and continuously monitor the process in which the metal changes from liquid to solid state while forming semi-finished products (wires, bars, tubes, strips, etc. )
The graphite "die" used in this transformation facilitates the following metal treatments: The shaping of the metal, the heat extra
Custom Silver Molds Quality High Graphite Mould Carbon Graphite Frame Advantages:
1. Thermal stability: According to the service conditions of graphite crucible hot and cold, special design is carried out to ensure the reliability of product quality.Graphite crucible performance:
2. Erosion resistance: Uniform and fine matrix design delays the erosion degree of crucible.
3. Impact resistance: The graphite crucible can withstand very high thermal impact strength, so any processing can be safely carried out.
4. Acid resistance: The addition of special materials significantly improves the quality of crucible, has excellent performance in acid resistance index, and greatly extends the service life of graphite crucible.
5. High thermal conductivity: High content of fixed carbon ensures good thermal conductivity, reduces dissolution time, and significantly reduces oil consumption or other energy consumption.
6. Control of metal pollution: Strict control of material composition ensures that the graphite crucible has no pollution to metal during dissolution.
7. Quality stability: The production technology and quality assurance system of the high-pressure forming method fully guarantee the quality stability., and please inform us of the working conditions of the products you need. We will choose appropriate materials for you and provide you with satisfactory products and services.
Custom Silver Molds Quality High Graphite Mould Carbon Graphite Frame Advantages Materials:
We can machine various types of graphite connector according to customers' designs.
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
| Property | Unit | Value |
|
Bulk density
|
g/cm3
|
1.75 |
| Max. grain size | mm | 0.8 |
| Specific electrical resistivity |
µΩm
|
7.5 |
| Young's modulus (dynamic measurement) | Gpa | 10 |
| Flexural strength | Mpa | 17 |
| Compressive strength | Mpa | 42 |
| Thermal expansion(20-200°C) | 10-6K-1 | 2.5 |
| Thermal conductivity | Wm-1K-1 | 140 |
| Ash value | ppm | <=20 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
