Product Details:
|
| Material: | Foreign Graphite | Size: | Customized |
|---|---|---|---|
| Technique: | Die Molded,Sintering Mold | Porosity (%): | Normal |
| Package: | Wooden Box | Deliver Time: | 5-8 Work Days |
| High Light: | 50ppm Graphite Moulds,50ppm graphite molds for metal,10.8Gpa Graphite Moulds |
||

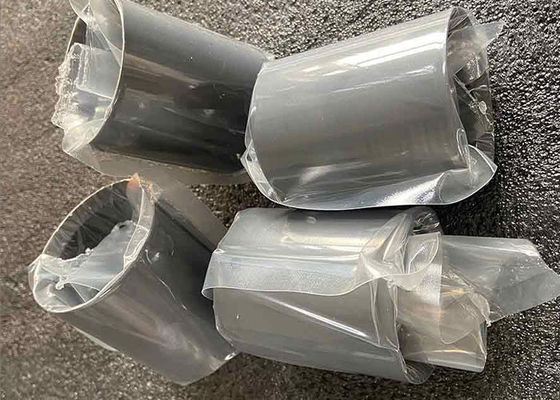

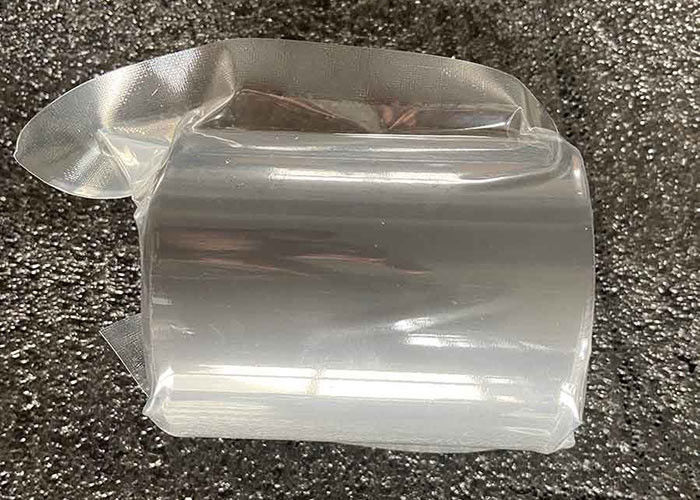

Customized Carbon Graphite Sleeve Moulds Electrical Resistivity Flexural Strength
Products details:
Customized Carbon Graphite Sleeve Moulds Electrical Resistivity Flexural Strength performance:
1. High temperature resistance
2. Good self-lubrication property
3. High mechanical strength
4. Good corrosion resistance
5. High compression strength and flexural strength
6. It also has fine C.T.E
7. Low friction coefficient
Customized Carbon Graphite Sleeve Moulds Electrical Resistivity Flexural Strength Materials:
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
JC-G347
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.
Production emvironment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
