Product Details:
|
| Material: | Graphite | Application: | Semiconductor |
|---|---|---|---|
| Product Name: | High Purity Graphite,Graphite Rod | Materials: | High Pure High Density Graphite |
| Key Words: | Aerospace Isostatic Graphite Mould | Size And Shape: | Customize Production Graphite Mould |
| Name: | Graphite Casting Mould | Size: | Customized |
| High Light: | 1.85g Cm3 custom graphite ingot molds,1.85g Cm3 gold ingot mold,60Mpa custom graphite ingot molds |
||

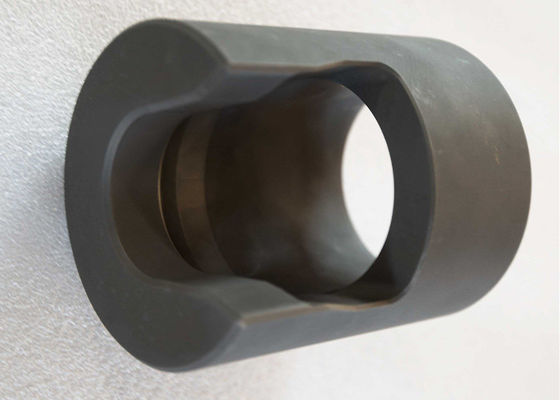

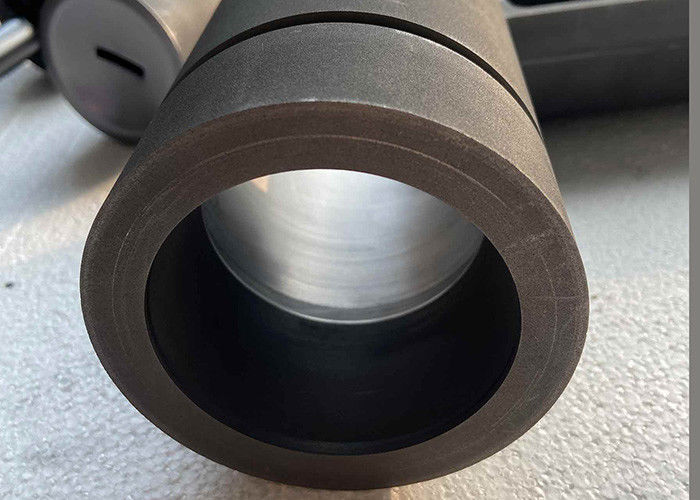

Hot Sale High Quality Customized Metal Melting Graphite Ingot Mould
Product details :
Hot Sale High Quality Customized Metal Melting Graphite Ingot Mould Features:
1. Excellent thermal conductivity and conductivity.
2. Low linear expansion coefficient, good thermal stability and thermal shock resistance.
3. Chemical resistance is not easy to react with most metals.
4. In high temperature in most of the copper base tire body sintering( temperature above 800 ºC) intensity increases with temperature rise
5. Good lubrication and abrasion resistance.
6. Easy to process, good mechanical processing performance, can be made into a complex shape, high precision mold.
Hot Sale High Quality Customized Metal Melting Graphite Ingot Mould Materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
