Product Details:
|
| Material: | Graphite | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box And Vacuum Packing | Deliver Time: | 10 Work Days |
| Port: | Qingdao | Shape: | Customized |
| High Light: | 10.8 Gpa Graphite Moulds,10.8 Gpa centrifugal casting mold,49Mpa Graphite Moulds |
||

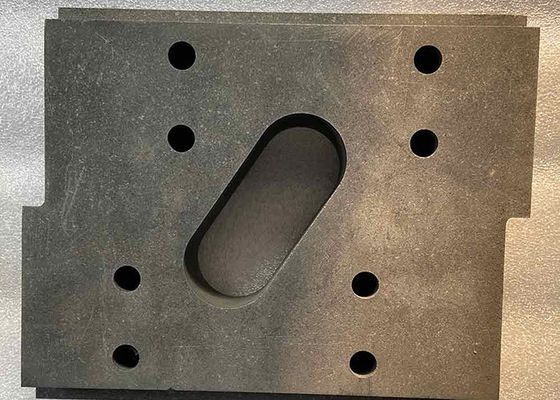

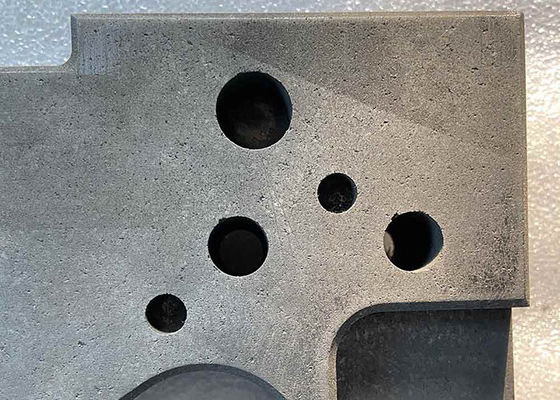

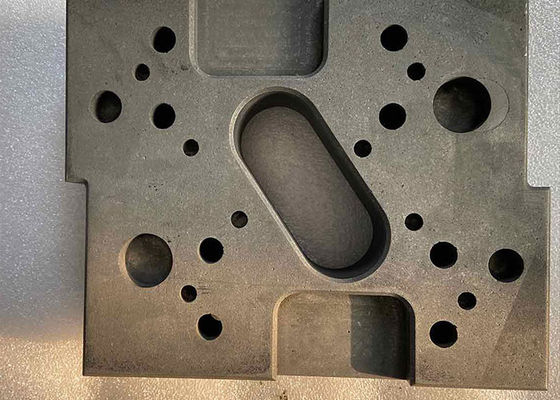

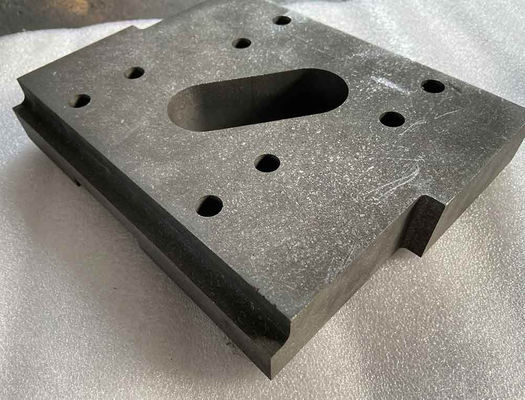

Hot Sale High Quality Customized Shape Carbon Graphite Moulds
Product details:
Hot Sale High Quality Customized Shape Carbon Graphite Moulds Features:
1. High mechanical strength .As the temperature rises, the graphite strength increases
2. High temperature resistance
3. High heat conductivity
4. Hihg anti-oxidation
5. Good heat shock resistance
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability, strong corrosion resistance to acid and alkali liquid
8. Small thermal expansion coefficient
Hot Sale High Quality Customized Shape Carbon Graphite Moulds Materials:
We can machine various types of graphite connector according to customers' designs.
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
