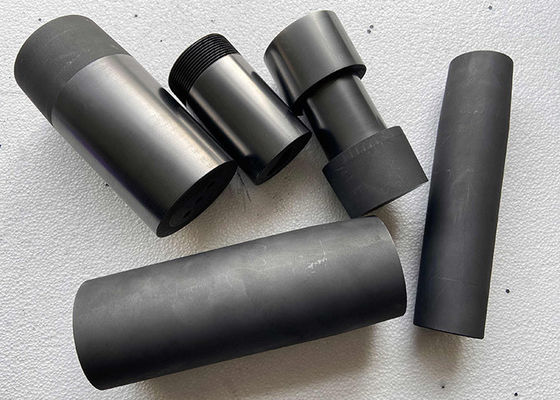

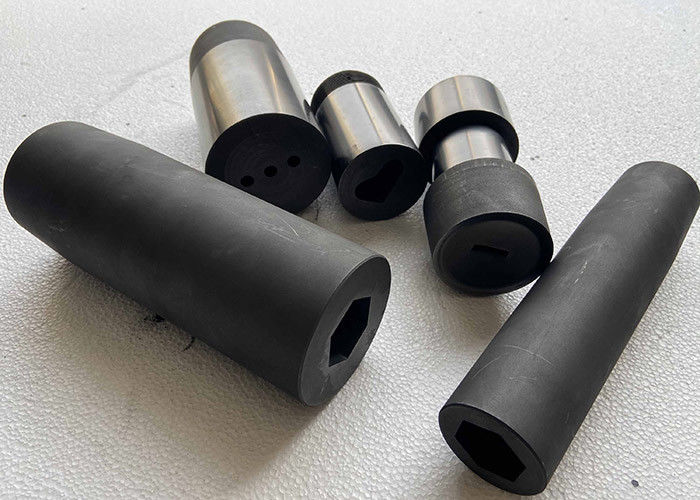

30Mpa Aerospace Isostatic Graphite Moulds For Copper Bar

Description
Material: Foreign Graphite Size: Customized
Technique: Die Molded,Sintering Mold Application: Metallurgy Industry,Casting,Metal Melting
Dimensions: Customize Production,Customer Request Product Name: High Purity Graphite,Graphite Rod
Materials: High Pure High Density Graphite,High Purity Graphtite Key Words: Aerospace Isostatic Graphite Mould
High Light:

0.8mm Graphite Moulds

,

0.8mm graphite rod

,

30mpa Graphite Moulds

Custom Graphite Mold Graphite Die For Copper Tube Continuous Casting

Products details:


High Density High Strength Graphite Dies For Copper Bar Horizontal Continuous Cast performance:
1.  Excellent thermal conductivity and conductivity.
2.  Low linear expansion coefficient, good thermal stability and thermal shock resistance.
3.  Chemical resistance is not easy to react with most metals.
4.  In high temperature in most of the copper base tire body sintering( temperature above 800 ºC) intensity increases with temperature rise
5.  Good lubrication and abrasion resistance.
6.  Easy to process, good mechanical processing performance, can be made into a complex shape, high precision mold.

High Density High Strength Graphite Dies For Copper Bar Horizontal Continuous Cast Application:
1.  Nonferrous metal continuous casting and semi-continuous casting graphite mould.
2.  Mold for pressure casting.
3.  Graphite mould for centrifugal casting.
4.  Hot pressing mold.
5.  Mould for glass forming.
6.  Sintering mold and other diamond sintering


High Density High Strength Graphite Dies For Copper Bar Horizontal Continuous Cast Materials:

JC-G347

PropertyUnitValue
Bulk densityg/cm31.85
Specific electrical resistivityµΩm11
Young's modulus (dynamic measurement)Gpa10.8
Flexural strengthMpa49
Shore hardness 58
C.T.EX10-6/°C5.5
Thermal conductivityW/mk116



*Value might be changed due to material size


Typical property Data JC-GSK

PropertyUnitValue
Bulk densityg/cm3>=1.72
Specific electrical resistivityµΩm<=8.5
Max. grain sizemm0.8
Flexural strengthMpa>=13.5
Compressive strengthMpa>=30
C.E.TX10-6<=2.5




*Value might be changed due to material size






























Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.


Production emvironment:
30Mpa Aerospace Isostatic Graphite Moulds For Copper Bar 030Mpa Aerospace Isostatic Graphite Moulds For Copper Bar 130Mpa Aerospace Isostatic Graphite Moulds For Copper Bar 230Mpa Aerospace Isostatic Graphite Moulds For Copper Bar 3
30Mpa Aerospace Isostatic Graphite Moulds For Copper Bar 4
30Mpa Aerospace Isostatic Graphite Moulds For Copper Bar 5
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
