Product Details:
|
| Material: | Graphite | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box And Vacuum Packing | Deliver Rime: | 5-8 Work Days |
| Port: | Qingdao | Application: | Semiconductor |
| Shape: | Customized | Brand: | JC |
| High Light: | 60Mpa Graphite Components,60Mpa Graphite Die Mold,Hardness95 Graphite Components |
||

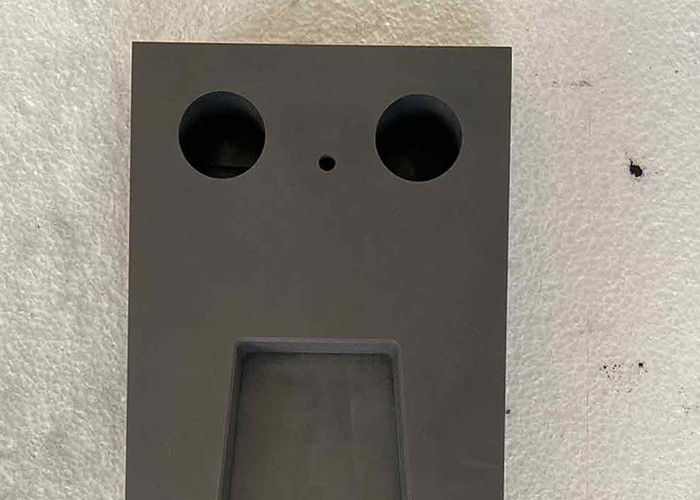

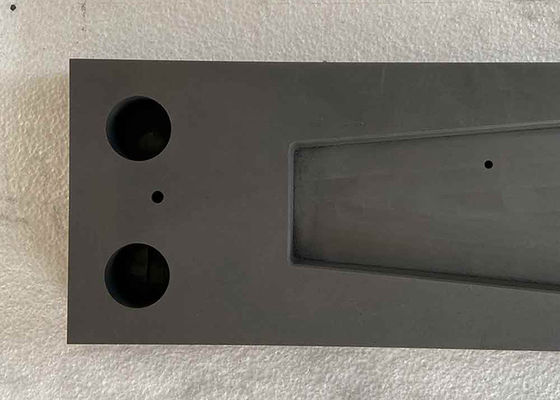

Customized Carbon Graphite Mould Graphite Dies
Product details :
Graphite components are critical to the process and continuously monitor the process in which the metal changes from liquid to solid state while forming semi-finished products (wires, bars, tubes, strips, etc. )
The graphite "die" used in this transformation facilitates the following metal treatments: The shaping of the metal, the heat extra
Customized Carbon Graphite Mould Graphite Application:
1. Used for Brass continuous casting
2. Used for Red copper continuous casting
3. Used for Continuous casting mould for jewelry of gold, silver, platinum, etc.
4. Used for Steel and stainless steel continuous casting
By the shape of the cast product, it is divided into round bar mould, hollow tube mould, and shaped mould
Customized Carbon Graphite Mould Graphite Dies Materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
