Product Details:
|
| Material: | Graphite | Superiority: | Precise Machining |
|---|---|---|---|
| Description: | Graphite Heating Unit | Application: | High Temperature Heating Elements |
| Size: | Customized | Shape: | Customized |
| Package: | Wooden Box | Deliver Time: | 10 Work Days |
| High Light: | 42Mpa graphite plate electrode,20ppm graphite bipolar plate,20ppm graphite plate electrode |
||

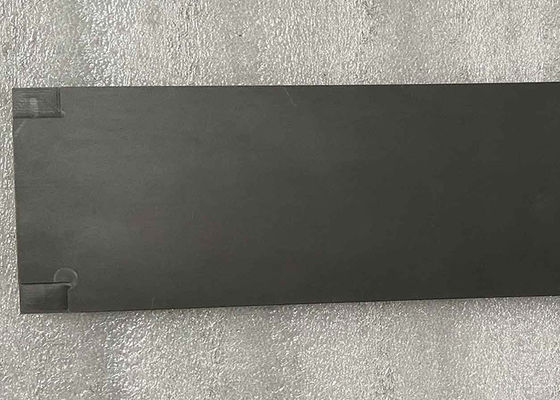

Customized High Density High Quality High Purity Graphite Parts
Products details:
Customized High Density High Quality High Purity Graphite Parts Advantages:
1. High strength, not easy to be damaged,
2. High temperature resistance,
3. Excellent corrosion resistance and so on.
4. Good high temperature mechanical properties, strength with temperature 2000 ºC high temperature increase with the rising of tolerance can be repeatedly used without thermal
damage.
Customized High Density High Quality High Purity Graphite Parts Materials:
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
| Property | Unit | Value |
|
Bulk density
|
g/cm3
|
1.75 |
| Max. grain size | mm | 0.8 |
| Specific electrical resistivity |
µΩm
|
7.5 |
| Young's modulus (dynamic measurement) | Gpa | 10 |
| Flexural strength | Mpa | 17 |
|
Compressive strength |
Mpa | 42 |
| Thermal expansion(20-200°C) |
10-6K-1 |
2.5 |
| Thermal conductivity | Wm-1K-1 | 140 |
| Ash value | ppm | <=20 |
*Value might be changed due to material size
JC-G347
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density |
g/cm3 |
>=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.
Production emvironment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
