Product Details:
|
| Material: | Foreign Graphite | Size: | Customized |
|---|---|---|---|
| Technique: | Die Molded,Sintering Mold | Application: | Metallurgy Industry,Casting,Metal Melting |
| Dimensions: | Customize Production,Customer Request | Product Name: | High Purity Graphite,Graphite Rod |
| Materials: | High Pure High Density Graphite,High Purity Graphtite | Key Words: | Aerospace Isostatic Graphite Mould |

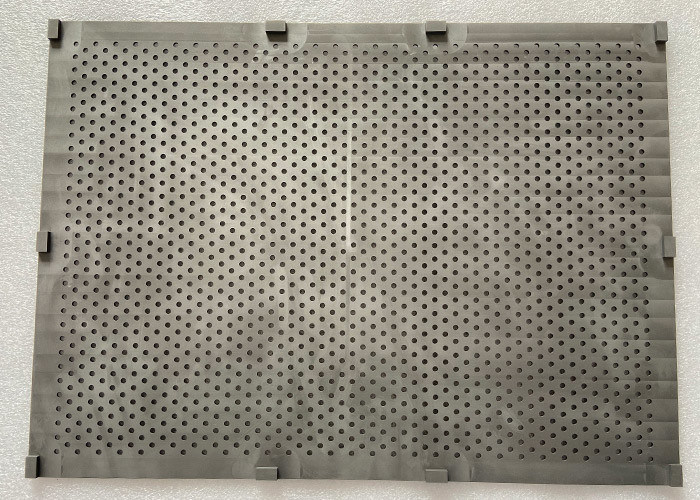

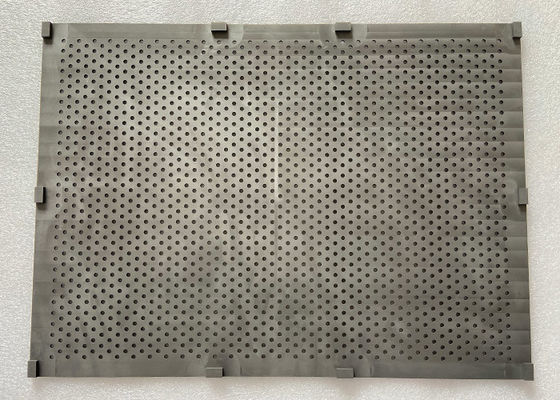

Sintered Electronic Graphite Die Graphite Moulds
Products details:
Sintered Electronic Graphite Die Graphite Moulds performance:
1. Excellent thermal conductivity and conductivity.
2. Low linear expansion coefficient, good thermal stability and thermal shock resistance.
3. Chemical resistance is not easy to react with most metals.
4. In high temperature in most of the copper base tire body sintering( temperature above 800 ºC) intensity increases with temperature rise
5. Good lubrication and abrasion resistance.
6. Easy to process, good mechanical processing performance, can be made into a complex shape, high precision mold.
Sintered Electronic Graphite Die Graphite Moulds Application:
1. Nonferrous metal continuous casting and semi-continuous casting graphite mould.
2. Mold for pressure casting.
3. Graphite mould for centrifugal casting.
4. Hot pressing mold.
5. Mould for glass forming.
6. Sintering mold and other diamond sintering
Sintered Electronic Graphite Die Graphite Moulds Materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.
Production emvironment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
