| Material: | Graphite | Size: | Customized |
|---|---|---|---|
| Shape: | Customized | Package: | Wooden Box And Vacuum Packing |
| Deliver Time: | 10 Work Days | Port: | Qingdao Port |
| Brand: | JC | Color: | Black |
| High Light: | 125Mpa graphite bearings high temperature,125Mpa graphite cover,5ppm graphite bearings high temperature |
||

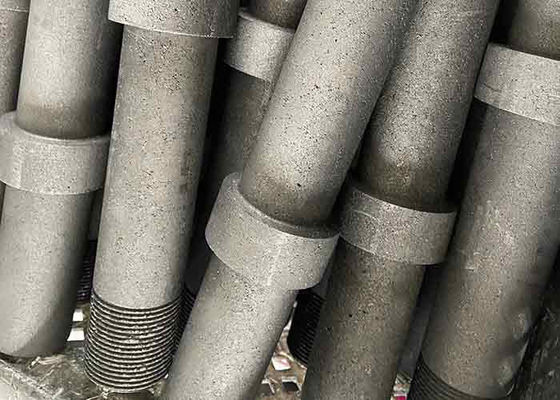

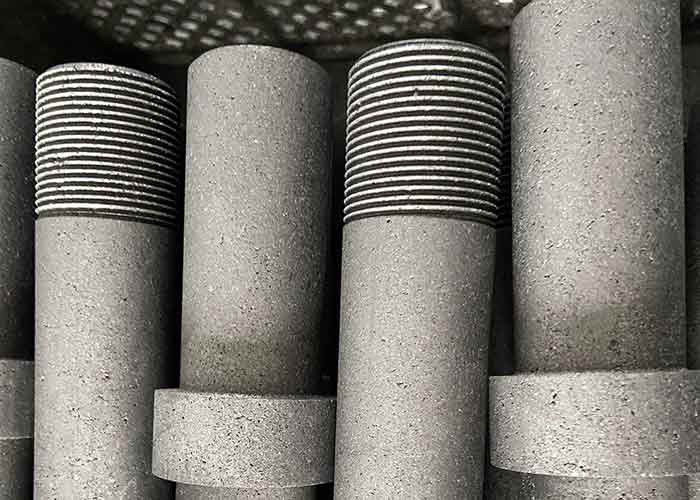

Customized High Purity Graphite Parts Carbon Graphite Connector
Products Details:
Customized High Purity Graphite Parts Carbon Graphite Connector Features:
Graphite has good thermal conductivity and high temperature resistance. In the process of high temperature use, the coefficient of thermal expansion is small, and it has certain strain resistance to rapid heat and rapid cooling. It has strong corrosion resistance to acid and alkaline solutions and has excellent chemical stability.
In the field of semiconductor and solar photovoltaic power generation, there are many graphite parts for silicon crystal growth equipment, such as graphite crucible, graphite thermal field, graphite cover plate, graphite seat for silicon wafer epitaxy, graphite insulation cover and carbon insulation material, etc. The graphite parts used are also With the development of silicon crystal size technology, graphite crucibles, graphite thermal fields and other materials are required to have high purity and large-scale, and develop to high-end sophisticated technology.
Customized High Purity Graphite Parts Carbon Graphite Connector materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
