Product Details:
|
| Material: | Foreign Graphite | Size: | Customized |
|---|---|---|---|
| Shape: | Customized | Package: | Wooden Box And Vacuum Packing |
| Deliver Time: | 10 Work Days | Port: | Qingdao Port |
| High Light: | 125Mpa Graphite Connectors,125Mpa connector for optical fiber,1.83g cm3 Graphite Connectors |
||

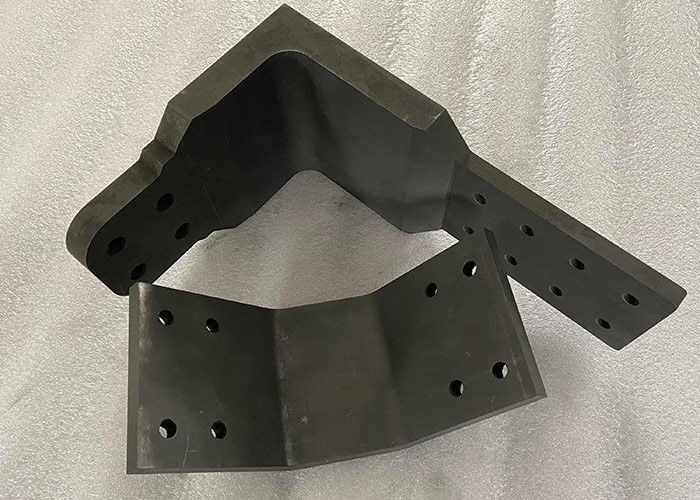

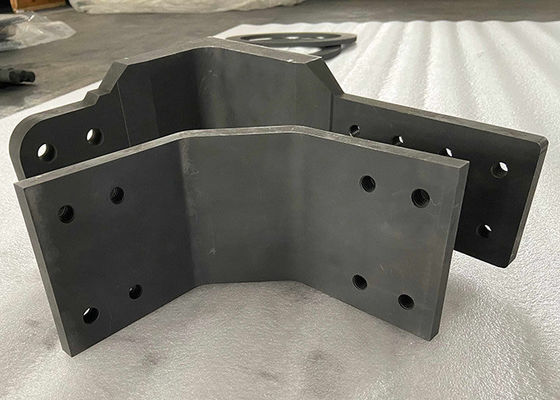

Customized High Quality Graphite Connector Graphite Components Photovoltaic Industry
Products Details:
Customized High Quality Graphite Connector Graphite Components Photovoltaic Industry Features:
Customized High Quality Graphite Connector Graphite Components Photovoltaic Industry Materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
