Product Details:
|
| Material: | Graphite | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box And Vacuum Packing | Deliver Time: | 5-8 Work Days |
| Port: | Qingdao | Shape: | Customized |
| Color: | Black | Brand: | JC |
| High Light: | 42Mpa Graphite Components,42Mpa Graphite Bolts,10GPa Graphite Components |
||

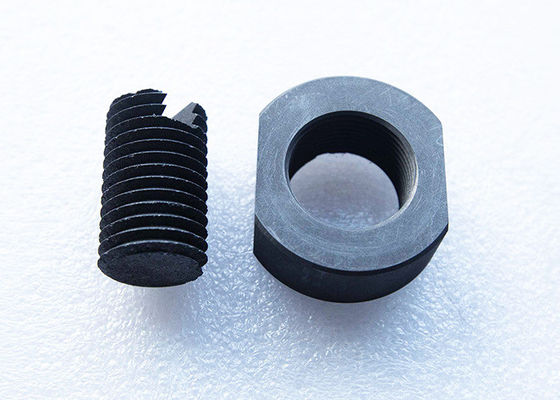

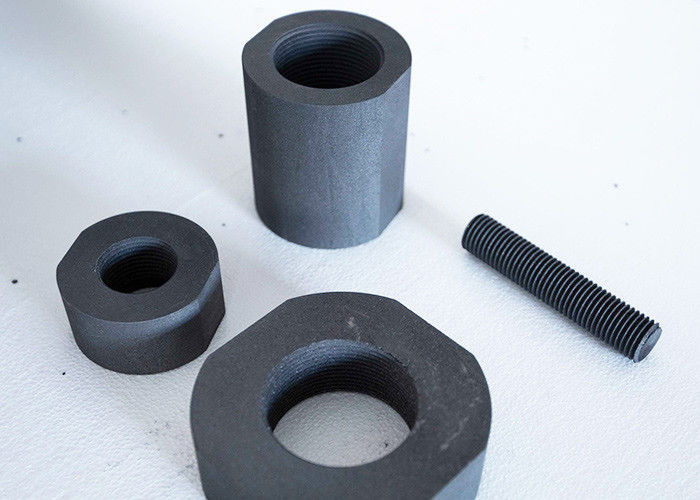

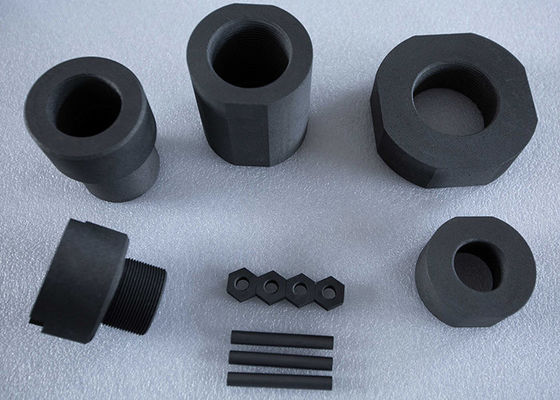

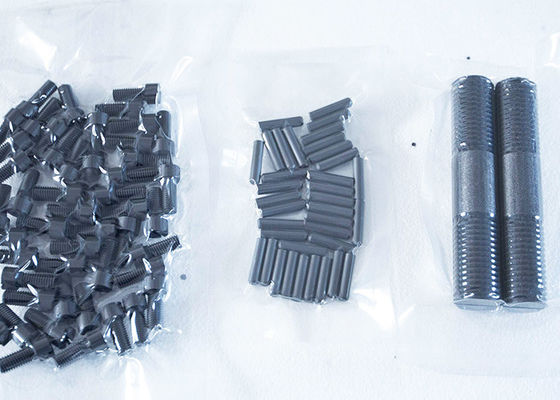

Graphite Bolts, Nuts For High Temperature And Vacuum Furnaces
Product details:
Graphite or Carbon-carbon composite material and carbon accessories used for heat treatment furnace in high-temperature(vacuum furnace) manufacturing;including the lining,support agencies,charge mechanism and heater loading,rail and base,Graphite mold and Carbon-carbon
composite materials used in heat treatment process of industrial parts and components,carbon carpet of thermal insulation,graphite soft carpet and graphitet hard blanket;graphite paper;hardening,sintering,welding,coating with graphite and Carbon-carbon composite charge
mechanism,hardware alloy using graphite boat,crucible and container,liner,heater parts and heating rod,tube;hardware alloy using graphite loading disk,loading model,charge mechanism and components;foil welding,vacuum brazing graphite model and supporting materials and parts,stainless steel of continuous casting,stainless steel plate and strip rolling using graphite roll,mold and billets,hot-press sintering with mold,diamond tools,abrasives,abrasive manufacturing using graphite mold.
Graphite Bolts, Nuts For High Temperature And Vacuum Furnaces Features:
1. High density
2. High temperature resistance
3. Anti-oxidation
4. Good thermal shock resistance
5. Excellent electrical conductivity
6. High mechanical strength
Graphite Bolts, Nuts For High Temperature And Vacuum Furnaces Application:
Graphite bolts, graphite nuts, graphite fastener and graphite screws are widely used for industrial furnace, vacuum furnace, metallurgy, machinery etc.
Graphite Bolts, Nuts For High Temperature And Vacuum Furnaces materials:
We can machine various types of graphite connector according to customers' designs.
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
| Property | Unit | Value |
|
Bulk density
|
g/cm3
|
1.75 |
| Max. grain size | mm | 0.8 |
| Specific electrical resistivity |
µΩm
|
7.5 |
| Young's modulus (dynamic measurement) | Gpa | 10 |
| Flexural strength | Mpa | 17 |
| Compressive strength | Mpa | 42 |
| Thermal expansion(20-200°C) | 10-6K-1 | 2.5 |
| Thermal conductivity | Wm-1K-1 | 140 |
| Ash value | ppm | <=20 |
*Value might be changed due to material size
JC-G347
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
