Product Details:
|
| Material: | Graphite | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box And Vacuum Packing | Deliver Time: | 5-8 Work Days |
| Port: | Qingdao | Shape: | Customized |
| High Light: | 20ppm Graphite Connectors,17Mpa optical fiber connector,17Mpa Graphite Connectors |
||

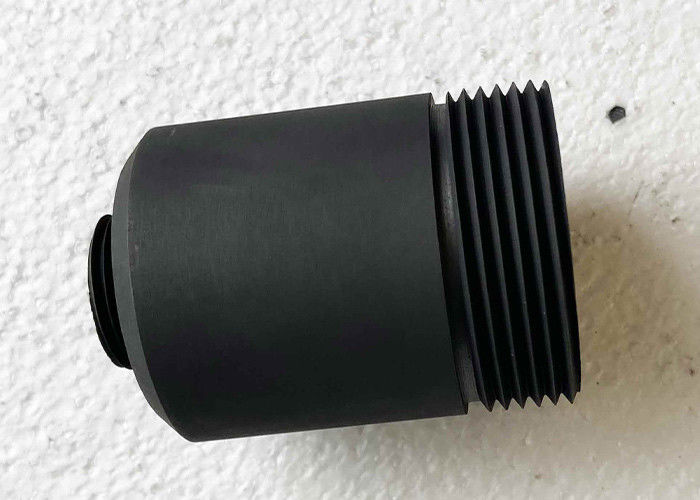

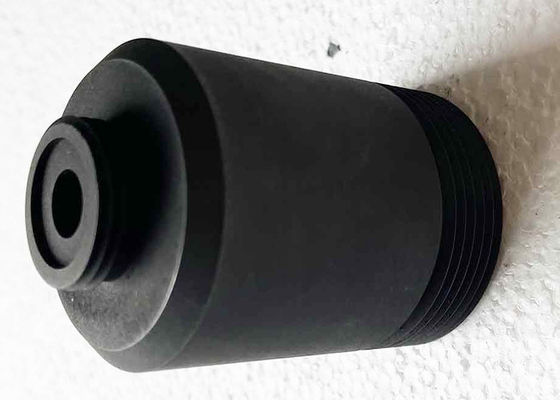

Customized High Temperature Stability Graphite Graphite support bolt
Product details:
High Temperature Stability Graphite Graphite support bolt Features:
1. High density
2. High temperature resistance
3. Anti-oxidation
4. Good thermal shock resistance
5. Excellent electrical conductivity
6. High mechanical strength
Customized High Temperature Stability Graphite Graphite support bolt Application
Graphite bolts, graphite nuts, graphite fastener and graphite screws are widely used for industrial furnace, vacuum furnace, metallurgy, machinery etc.
Customized High Temperature Stability Graphite Graphite support bolt materials:
We can machine various types of graphite connector according to customers' designs.
| Property | Unit | Value |
|
Bulk density
|
g/cm3
|
1.75 |
| Max. grain size | mm | 0.8 |
| Specific electrical resistivity |
µΩm
|
7.5 |
| Young's modulus (dynamic measurement) | Gpa | 10 |
| Flexural strength | Mpa | 17 |
| Compressive strength | Mpa | 42 |
| Thermal expansion(20-200°C) | 10-6K-1 | 2.5 |
| Thermal conductivity | Wm-1K-1 | 140 |
| Ash value | ppm | <=20 |
*Value might be changed due to material size
JC-G347
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
