Product Details:
|
| Material: | High Pure Artificial Graphite Materials | Key Words: | Graphite Mould |
|---|---|---|---|
| Material 2: | High Pure Artificial Graphite Materials | Name: | Graphite Parts |
| Size: | Customized | Package: | Wooden Box And Vacuum Packing |
| High Light: | 0.8mm Graphite Components,17Mpa carbon graphite seal rings,17Mpa Graphite Components |
||

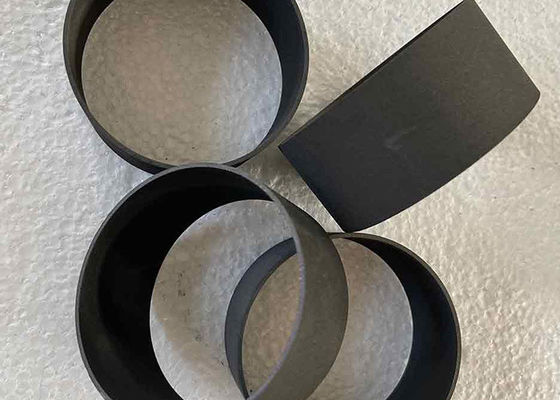

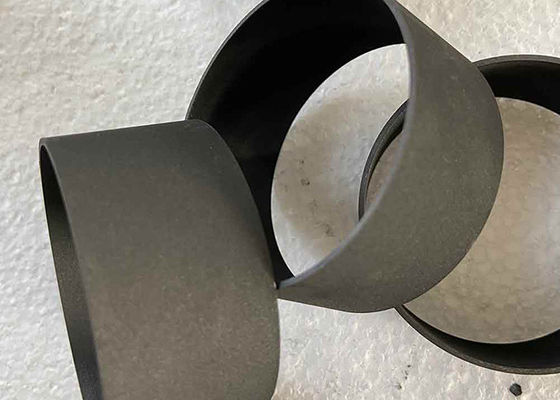

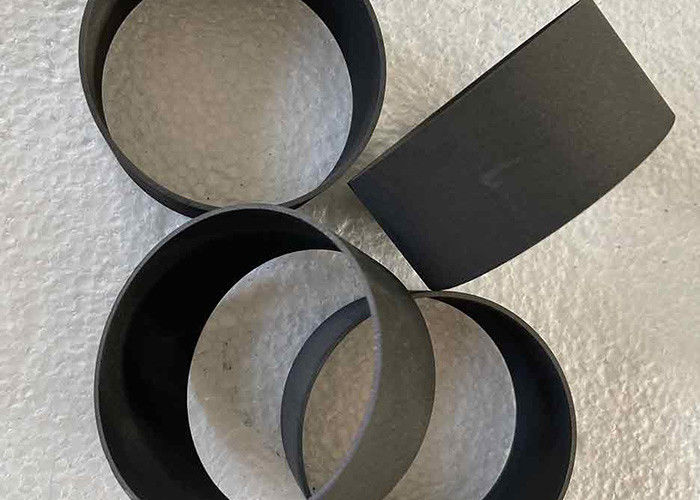

High Quality High Density High Purity Graphite Materials Parts Graphite Ring
Product details:
High Quality High Density High Purity Graphite Materials Parts Graphite Ring Features:
High Quality High Density High Purity Graphite Materials Parts Graphite Ring materials:
We can machine various types of graphite connector according to customers' designs.
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
| Property | Unit | Value |
|
Bulk density
|
g/cm3
|
1.75 |
| Max. grain size | mm | 0.8 |
| Specific electrical resistivity |
µΩm
|
7.5 |
| Young's modulus (dynamic measurement) | Gpa | 10 |
| Flexural strength | Mpa | 17 |
| Compressive strength | Mpa | 42 |
| Thermal expansion(20-200°C) | 10-6K-1 | 2.5 |
| Thermal conductivity | Wm-1K-1 | 140 |
| Ash value | ppm | <=20 |
*Value might be changed due to material size
JC-G347
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
