Product Details:
|
| Mateial: | Chinese Graphite | Material: | Foreign Graphite |
|---|---|---|---|
| Chemical Composition: | Carbon | Size: | Customized |
| Package: | Wooden Box And Vacuum Packing | Purity: | 99% |
| High Light: | 10.8Gpa Graphite Raw Material,hardness 58 graphite cylinder,hardness 58 Graphite Raw Material |
||

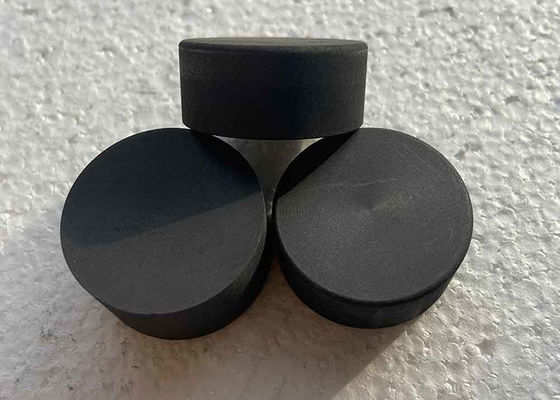

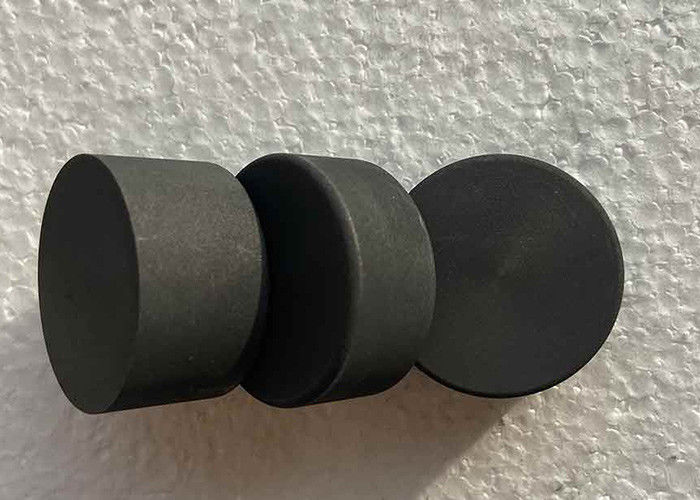

Thermal Shock Resistance Carbon Graphite Block Graphite Raw Material
Product details :
High density / Fine grain size / High purity / High strength / Low specific resistance / Ease of precise machining
Excellent thermal shock resistance to high temperature and oxidation / Good anticorrosion
Semiconductor (Monocrystalline Silicon) / Vacuum furnace / Continuous casting / Sealing products / Space & medical industry / Forge moulds EDM.
Heaters / Heat shields /Electronic tube anodes / Melting and sinteringmoulds for Pottery & Electronic Products & Cemented Carbide & Diamond & Aluminium & Copper & Other metals/ Etc
Thermal Shock Resistance Carbon Graphite Block Graphite Raw Material Materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
