Product Details:
|
| Material: | Chinese Graphite | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box | Deliver Time: | 5-8 Work Days |
| Port: | Qingdao Port | Type: | Graphite Composite Sheet |
| Application: | High Temperature | Brand: | JC |
| High Light: | 5ppm High Temp Graphite,1.5um Aperture graphite composite sheet,1.5um High Temp Graphite |
||

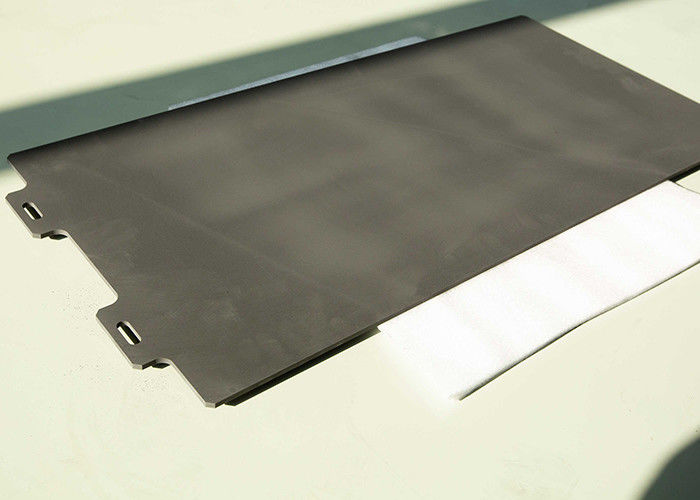

High Temp Graphite -Graphite Plate For High Temperature And Vacuum Furnaces
Product details:
Good Thermal Graphite Plate For High Temperature And Vacuum Furnaces Product features:
1. The processing materials are ultrafine granule structure, high purity and graphite with high graphitization degree.
2. High hardness, good anti-oxidation performance and high machining accuracy
3. Good conductivity, high resistivity, sufficient mechanical strength
4. Small porosity and dense structure.
5. Excellent thermal shock resistance, conductive and thermal conductivity.
6. High temperature resistance, corrosion resistance, acid and alkali resistance, good wear resistance.
7. Surface can be treated with anti-oxidation.
Good Thermal Graphite Plate For High Temperature And Vacuum Furnaces Applictaion:
High Temperature and Vacuum hurnaces
Good Thermal Graphite Plate For High Temperature And Vacuum Furnaces materials:
We can machine various types of graphite plate according to customers' designs.
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Typical property Data JC-500
| Properties | Test standard | Unit | Value |
| Average grain size | μm | 10 | |
| Bulk density | DIN IEC 60413/203 | g/c㎡ | 1.77 |
| Open porosity | DIN 66133 | Vol.% | 13 |
| Medium pore size | DIN 66133 | μm | 1.5 |
| Permeability(air at 20℃) | DIN 66133 | C㎡/s | 0.1 |
| Rockwell hardness HR 10/100 | DIN IEC 60413/303 | 70 | |
| Specific electrical resistivity | DIN IEC 60413/402 | μΩm | 14 |
| Flexural strength | DIN IEC 60413/501 | MPɑ | 50 |
| Compressive strength | DIN 51910 | MPɑ | 120 |
| Young's modulus | DIN 51915 | MPɑ | 10.5*103 |
| Thermal expansion(20-200℃) | DIN 50909 | k-1(C-1) | 3.9*10-6 |
| Thermal conductivity (20℃) | DIN 51908 | Wm-1k-1 | 80 |
| Ash content | DIN 51903 | ppm | ** |
*Value might be changed due to material size
**Ash value according to purity specifications
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
