Isostatic Vacuum Furnace Graphite

Isostatic Vacuum Furnace Graphite
Isostatic Vacuum Furnace Graphite Isostatic Vacuum Furnace Graphite

Large Image :  Isostatic Vacuum Furnace Graphite

Product Details:
Place of Origin: Qingdao
Brand Name: JC
Certification: JC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 5000PC

Isostatic Vacuum Furnace Graphite

Description
Material: Graphite Key Words: Isostatic Graphite Mould
Feature: High Density Size: Customers' Requirement
Package: Wooden Box
High Light:

Isostatic Vacuum Furnace Graphite

,

50ppm furnace heating element

,

50ppm Vacuum Furnace Graphite

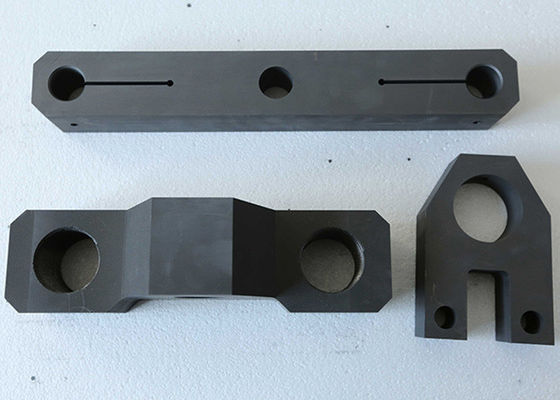

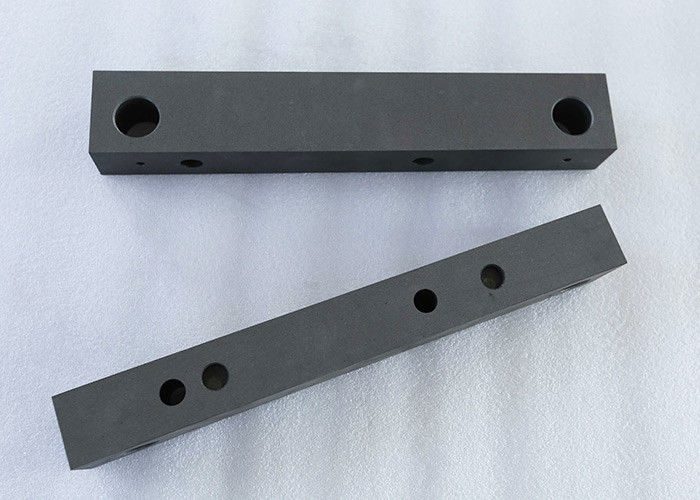

High Temp Graphite- Graphite Connector For High Temperature And Vacuum Furnaces, Furnaces Heating Parts



Products details:

1. The processing materials are ultrafine granule structure, high purity and graphite with high graphitization degree.
2. High hardness, good anti-oxidation performance and high machining accuracy
3. Good conductivity, high resistivity, sufficient mechanical strength
4. Small porosity and dense structure.
5. Excellent thermal shock resistance, conductive and thermal conductivity.
6. High temperature resistance, corrosion resistance, acid and alkali resistance, good wear resistance.
7. Surface can be treated with anti-oxidation.

The graphite connector for high temperature and vacuum furnaces are widly used in single crystal furnace graphite thermal field, photovoltaic industry and industrial machinery because of its high temperature resistance, corrosion resistance and thermal stability. The production's shap and sizes according to customers' requirements.



Graphite Connector For High Temperature And Vacuum Furnaces, Furnaces Heating Parts Advantages:

1. High density and high temperature resistance
2. High mechanical strength
3. Oxidization retardent treatment availible
4. Long service life
5. Machined as your design







About Materials:

Typical property Data JC-Molded graphite
Properties Unit



Numerical value

Bulk Density



g/cm3

1.83
Specific Resistance



μΩ-m

15
Ash Content ppm 50
Porosity % 17
Compressive Strength Mpa 72.6

























*Value might be changed due to material size



Typical property Data JC-HLM

Property Unit Value
Bulk density
g/cm3
1.75
Max. grain size mm 0.8
Specific electrical resistivity



µΩm
7.5
Young's modulus (dynamic measurement) Gpa 10
Flexural strength Mpa 17
Compressive strength Mpa 42
Thermal expansion(20-200°C) 10-6K-1 2.5
Thermal conductivity Wm-1K-1 140
Ash value ppm <=20



































*Value might be changed due to material size





JC-G347

Property Unit Value
Bulk density g/cm3 1.85
Specific electrical resistivity µΩm 11
Young's modulus (dynamic measurement) Gpa 10.8
Flexural strength Mpa 49
Shore hardness   58
C.T.E X10-6/°C 5.5
Thermal conductivity W/mk 116



























*Value might be changed due to material size



Typical property Data JC-GSK

Property Unit Value
Bulk density g/cm3 >=1.72
Specific electrical resistivity µΩm <=8.5
Max. grain size mm 0.8
Flexural strength Mpa >=13.5
Compressive strength Mpa >=30
C.E.T X10-6 <=2.5























*Value might be changed due to material size







Graphite advantages:

Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient

We can machine various types of graphite connector according to customers' designs.

Production emvironment:

Isostatic Vacuum Furnace Graphite 0Isostatic Vacuum Furnace Graphite 1Isostatic Vacuum Furnace Graphite 2Isostatic Vacuum Furnace Graphite 3

Isostatic Vacuum Furnace Graphite 4

Isostatic Vacuum Furnace Graphite 5

Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
