Product Details:
|
| Mateial: | Graphite | Material: | Foreign Graphite |
|---|---|---|---|
| Size: | Customized | Package: | Wooden Box And Vacuum Packing |
| Deliver Time: | 5-8 Work Days | Port: | Qingdao Port |
| Brand: | JC | Color: | Black |
| High Light: | 49Mpa Graphite Raw Material,49Mpa large graphite block,hardness58 Graphite Raw Material |
||

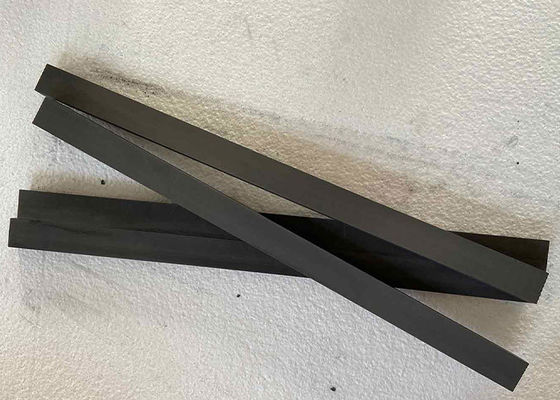

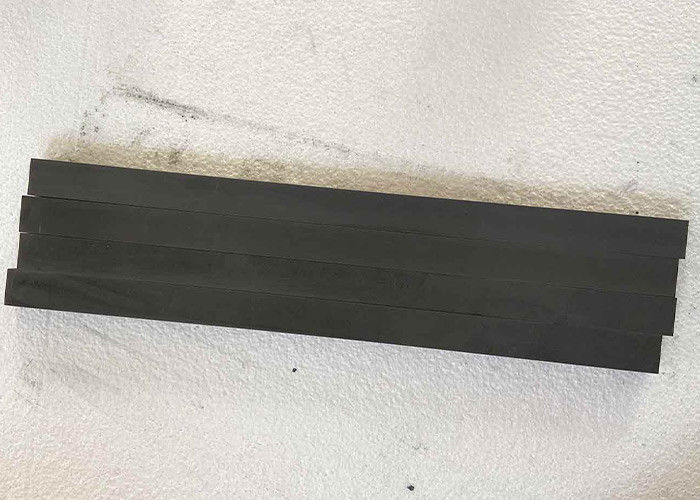

Electrical Resistivity Graphite Raw Material Carbon Graphite Block
Product details :
Electrical Resistivity Graphite Raw Material Carbon Graphite Block Features:
1. Faster processing speed. In general, the machining speed of graphite is 2-5 times faster than that of copper, and the discharge speed is 3-5 times faster than that of copper.
2. Materials are less prone to deformation and have obvious advantages in the processing of thin reinforcement materials. The softening point of copper is around 1000 degrees, which is prone to deformation due to heating. The sublimation temperature of graphite is 3650 degrees, and the thermal expansion coefficient is only 1/30 of that of copper.
3. Lighter weight. The density of graphite is only 1/5 of that of copper. Large electrode discharge machining can effectively reduce the burden of machine tool (EDM) and is more suitable for the application of large mould.
4. Less discharge consumption. As the spark oil also contains C atoms, the high temperature causes the C atoms in the spark oil to be decomposed during the discharge machining process. In turn, a protective film is formed on the surface of the graphite electrode to compensate for the loss of the graphite electrode
Electrical Resistivity Graphite Raw Material Carbon Graphite Block Material:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
