Product Details:
|
| Material: | Graphite | Application: | High Temperature Heating Elements |
|---|---|---|---|
| Superiority: | Precise Machining | Size: | Customized |
| Package: | Wooden Box | Deliver Time: | 10 Work Days |
| Port: | Qingdao Port | Description: | Graphite Heating Unit |
| High Light: | 72.6Mpa High Temp Graphite,72.6Mpa graphite composite sheet,50ppm High Temp Graphite |
||

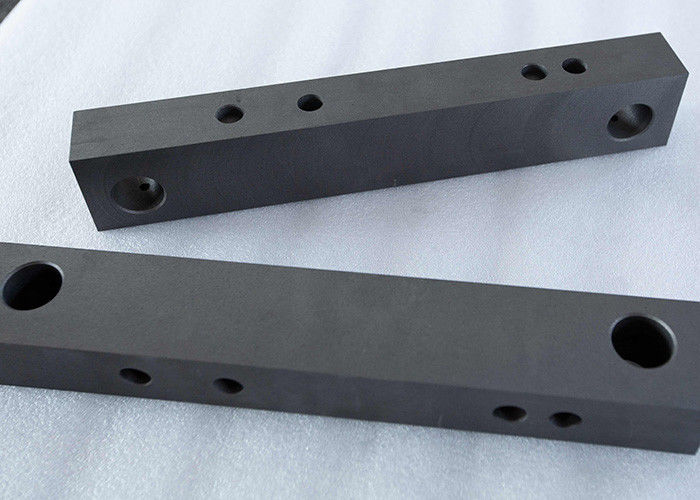

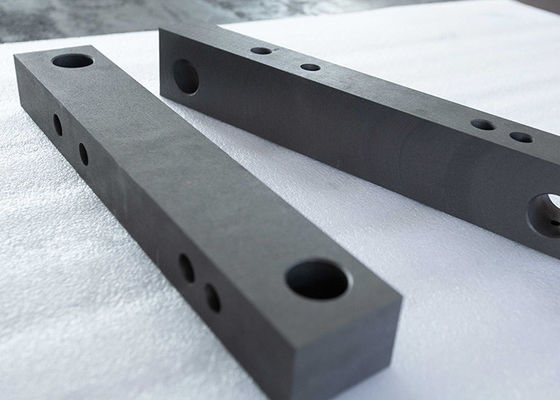

High Temp Graphite- Graphite Connector For High Temperature And Vacuum Furnaces, Furnaces Heating Parts
Products details:
The graphite connector for high temperature and vacuum furnaces are widly used in single crystal furnace graphite thermal field, photovoltaic industry and industrial machinery because of its high temperature resistance, corrosion resistance and thermal stability. The production's shap and sizes according to customers' requirements.
Graphite Connector For High Temperature And Vacuum Furnaces, Furnaces Heating Parts Advantages:
1. High density and high temperature resistance
2. High mechanical strength
3. Oxidization retardent treatment availible
4. Long service life
5. Machined as your design
Graphite Connector For High Temperature And Vacuum Furnaces, Furnaces Heating Parts Materials:
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
| Property | Unit | Value |
|
Bulk density
|
g/cm3
|
1.75 |
| Max. grain size | mm | 0.8 |
| Specific electrical resistivity |
µΩm
|
7.5 |
| Young's modulus (dynamic measurement) | Gpa | 10 |
| Flexural strength | Mpa | 17 |
|
Compressive strength |
Mpa | 42 |
| Thermal expansion(20-200°C) |
10-6K-1 |
2.5 |
| Thermal conductivity | Wm-1K-1 | 140 |
| Ash value | ppm | <=20 |
*Value might be changed due to material size
JC-G347
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density |
g/cm3 |
>=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.
Production emvironment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
