50ppm Industrial Graphite Products Corrosion Resistance

50ppm Industrial Graphite Products Corrosion Resistance
50ppm Industrial Graphite Products Corrosion Resistance 50ppm Industrial Graphite Products Corrosion Resistance

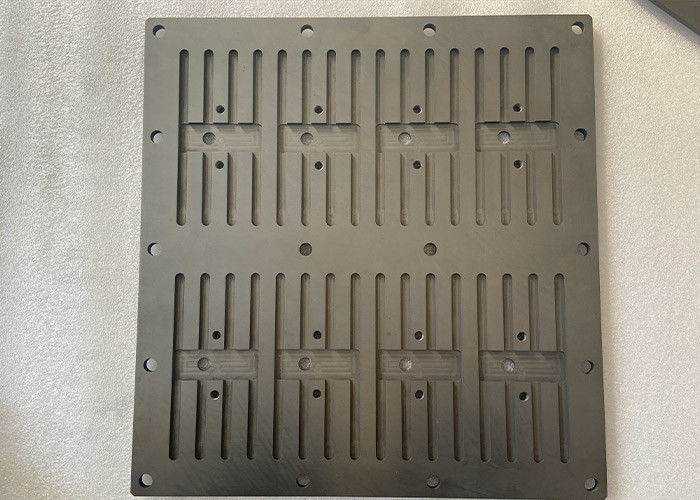

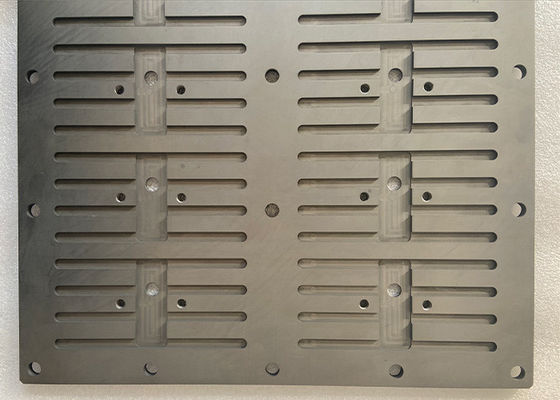

Large Image :  50ppm Industrial Graphite Products Corrosion Resistance

Product Details:
Place of Origin: Qingdao
Brand Name: JC
Certification: JC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box and vacuum packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 5000PC

50ppm Industrial Graphite Products Corrosion Resistance

Description
Material: High Purity Graphtite Flexural Strength: Flexural Strength
Thickness: Customers' Demand Application: Metal Casting, Smelting, Sintering Furnaces
High Light:

72.6Mpa industrial graphite products

,

50ppm graphite plate electrode

,

50ppm industrial graphite products

Graphite High Purity Carbon Graphite Plate Industrial Graphite Products



Production details :

Graphite High Purity Carbon Graphite Plate Industrial Graphite Products:
Graphite Plates that are widely used in the Glass & Jewellery, and Heating & Furnace industries.

Graphite plates are often used for fuel cells, electrolysis, electroplating, and other various mechanical applications where friction, heat, or electrical properties are factors. They are tough and can withstand repeated wear and tear, apart from being good conductors of heat and electricity.



Graphite High Purity Carbon Graphite Plate Industrial Graphite Products:
1)  Low thermal expansion coefficient
2)  Better thermak conductivity
3)  Stable chemical perfermance
4)  Better corrosion resistance
5)  Stronger electrical conductivity





Graphite High Purity Carbon Graphite Plate Industrial Graphite Materials :

Typical property Data JC-Molded graphite
Properties Unit



Numerical value

Bulk Density



g/cm3

1.83
Specific Resistance



μΩ-m

15
Ash Content ppm 50
Porosity % 17
Compressive Strength Mpa 72.6

























*Value might be changed due to material size
**Ash value according to purity specifications

Typical property Data JC-510

Property Unit Value
Bulk density g/cm3 1.83
grain size um 10
Aperture um 1.5
Specific electrical resistivity µΩm 13
Young's modulus (dynamic measurement) Gpa 11.5
Flexural strength Mpa 60
compressive strength Mpa 125
Shore hardness   95
Thermal expansion(20-200℃) X10-6K-1 4
Thermal conductivity W/mk 100
Ash value ppm 5

*Value might be changed due to material size



JC-G347

Property Unit Value
Bulk density g/cm3 1.85
Specific electrical resistivity µΩm 11
Young's modulus (dynamic measurement) Gpa 10.8
Flexural strength Mpa 49
Shore hardness   58
C.T.E X10-6/°C 5.5
Thermal conductivity W/mk 116























*Value might be changed due to material size



Graphite advantages:

Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient



Production environment:

50ppm Industrial Graphite Products Corrosion Resistance 0

50ppm Industrial Graphite Products Corrosion Resistance 1

50ppm Industrial Graphite Products Corrosion Resistance 2

50ppm Industrial Graphite Products Corrosion Resistance 3

50ppm Industrial Graphite Products Corrosion Resistance 4

50ppm Industrial Graphite Products Corrosion Resistance 5

50ppm Industrial Graphite Products Corrosion Resistance 6

Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
