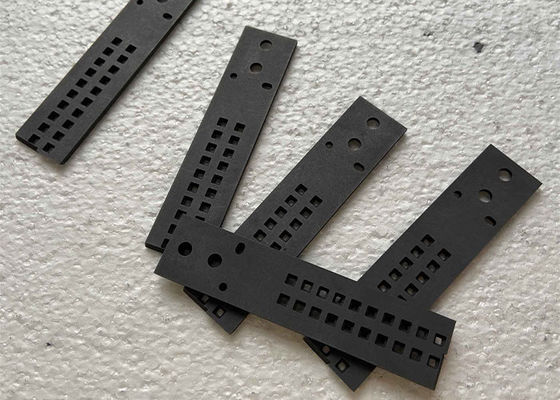

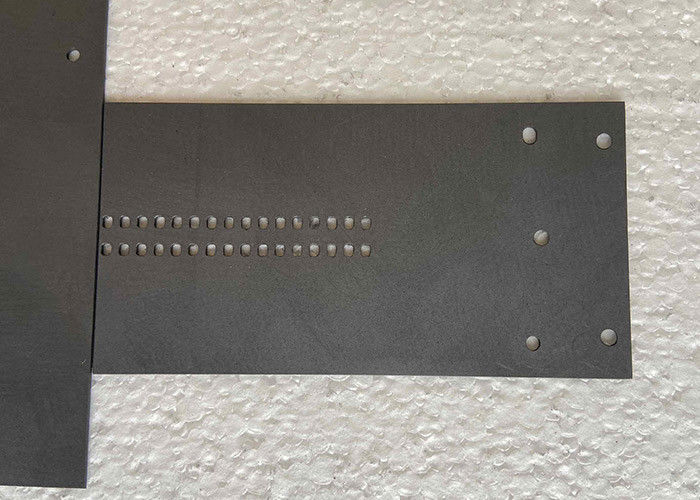

49Mpa Carbon Graphite Sheet Corrosion Resistance

49Mpa Carbon Graphite Sheet Corrosion Resistance
49Mpa Carbon Graphite Sheet Corrosion Resistance 49Mpa Carbon Graphite Sheet Corrosion Resistance

Large Image :  49Mpa Carbon Graphite Sheet Corrosion Resistance

Product Details:
Place of Origin: Qingdao
Brand Name: JC
Certification: JC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box and vacuum packing
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50000PC

49Mpa Carbon Graphite Sheet Corrosion Resistance

Description
Material: Foreign Graphite Size: Customized
Package: Wooden Box And Vacuum Packing Deliver Time: 5-8 Work Days
Port: Qingdao Shape: Customized
High Light:

49Mpa carbon graphite sheet

,

49Mpa industrial graphite products

,

hardness 58 carbon graphite sheet

Customized High Quality Graphite Plate Carbon Graphite Products



Product details:

Customized High Quality Graphite Plate Carbon Graphite Products



•  High temperature resistance, and the melting point is 3850±50°C, the boiling point is 4250.
•  Low ash content, high purity, avoiding pollution to your products.
•  Graphite material is easily to machine into any shapes you like.
•  High mechanical strength
•  Good sliding properties
•  High thermal conductivity
•  High thermal shock and chemical resistance
•  Food safety
•  Low wettability
•  High corrosion resistance and oxidation resistance
•  Good electrical conductivity
•  High density and high mechanical strength
•  Proper electrical conductivity





Customized High Quality Graphite Plate Carbon Graphite Products Materials:

We can machine various types of graphite connector according to customers' designs.

Typical property Data JC-Molded graphite
Properties Unit



Numerical value

Bulk Density



g/cm3

1.83
Specific Resistance



μΩ-m

15
Ash Content ppm 50
Porosity % 17
Compressive Strength Mpa 72.6

























*Value might be changed due to material size



Typical property Data JC-HLM

Property Unit Value
Bulk density
g/cm3
1.75
Max. grain size mm 0.8
Specific electrical resistivity



µΩm
7.5
Young's modulus (dynamic measurement) Gpa 10
Flexural strength Mpa 17
Compressive strength Mpa 42
Thermal expansion(20-200°C) 10-6K-1 2.5
Thermal conductivity Wm-1K-1 140
Ash value ppm <=20



































*Value might be changed due to material size





JC-G347

Property Unit Value
Bulk density g/cm3 1.85
Specific electrical resistivity µΩm 11
Young's modulus (dynamic measurement) Gpa 10.8
Flexural strength Mpa 49
Shore hardness   58
C.T.E X10-6/°C 5.5
Thermal conductivity W/mk 116



























*Value might be changed due to material size



Typical property Data JC-GSK

Property Unit Value
Bulk density g/cm3 >=1.72
Specific electrical resistivity µΩm <=8.5
Max. grain size mm 0.8
Flexural strength Mpa >=13.5
Compressive strength Mpa >=30
C.E.T X10-6 <=2.5























*Value might be changed due to material size







Graphite advantages:

Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1.  High strength. As the temperature rises, the graphite strength increases
2.  High temperature resistance
3.  Good heat shock resistance
4.  Anti-oxidation
5.  Strong corrosion resistance to acid and alkali liquid
6.  Good conductivity and thermal efficiency.
7.  Excellent chemical stability
8.  High heat conductivity
9.  Mechanical shock resistance
10.  Small thermal expansion coefficient





Production environment:









































49Mpa Carbon Graphite Sheet Corrosion Resistance 0

49Mpa Carbon Graphite Sheet Corrosion Resistance 149Mpa Carbon Graphite Sheet Corrosion Resistance 249Mpa Carbon Graphite Sheet Corrosion Resistance 349Mpa Carbon Graphite Sheet Corrosion Resistance 4

49Mpa Carbon Graphite Sheet Corrosion Resistance 5

49Mpa Carbon Graphite Sheet Corrosion Resistance 6

Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
