24.5Mpa Graphite Rods

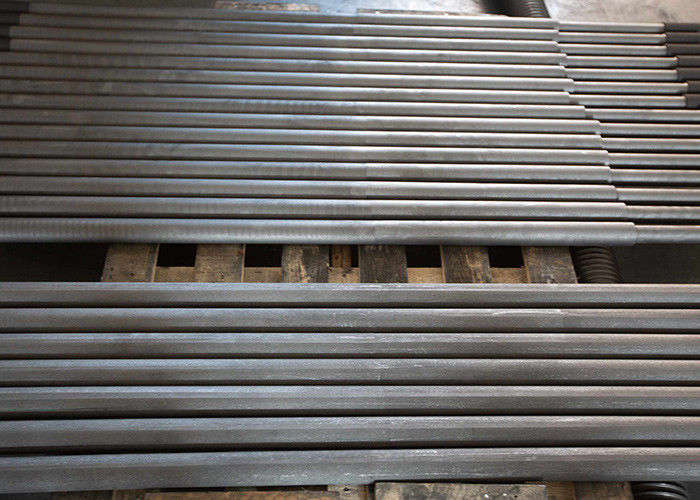

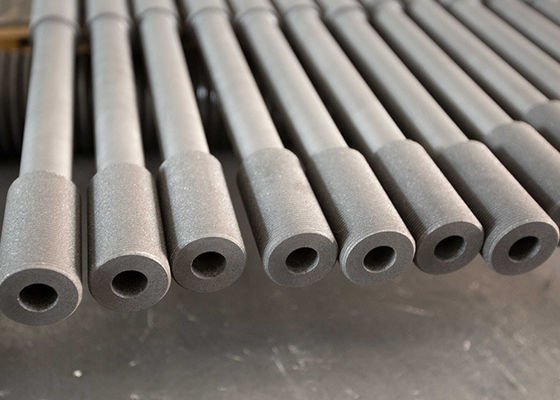

24.5Mpa Graphite Rods
24.5Mpa Graphite Rods 24.5Mpa Graphite Rods

Large Image :  24.5Mpa Graphite Rods

Product Details:
Place of Origin: Qingdao
Brand Name: JC
Certification: JC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50000PC

24.5Mpa Graphite Rods

Description
Material: Graphite Size: Customized
Shape: Customized Deliver Time: 10 Work Days
High Light:

24.5Mpa Graphite Rods

,

24.5Mpa graphite casting rods

,

Hardness 35 Graphite Rods

Customized High Pure High Strength Carbon Graphite Rod



Product deatils:



Customized High Pure High Strength Carbon Graphite Rod ​Features:

1. Good thermal stability, considering sudden heat and cold working condition, we apply special raw materials.

2. Impact resistance: Graphite crucible can withstand strong heat impact, therefore your can use it for any workmanship process.

3. Good thermal conductivity: Due to its high thermal conductivity, you can shorten melting time, saving energy.

4. Ash content is less than 300pp, melting metal can not be polluted during melting process.

Customized High Pure High Strength Carbon Graphite Rod ​ Application:
Graphite rods are often used for following:
1. Refractory material: Widely used in the metallurgical industry.
2. Conducting material: In the electronics industry, widely used for graphite electrode, brush,, etc
3. Wear-resisting material and lubricant:
Use graphite as wear-resisting and lubrication materials, can be 100m/s speed sliding in - 200 ~ 2000 °C temperature range, no or less lubricanting oil.
4. Sealing material: It can be as sealing ring in the equipment, such as centrifugal pump, hydraulic turbine , etc.
5. Anticorrosion material: Widely used in petroleum, chemical, hydrometallurgy departments.
6. Protection materials
Insulation, high temperature resistant, radiation





Customized High Pure High Strength Carbon Graphite Rod materials:



Typical property Data JC-GSK

Property Unit Value
Bulk density g/cm3 >=1.72
Specific electrical resistivity µΩm <=8.5
Max. grain size mm 0.8
Flexural strength Mpa >=13.5
Compressive strength Mpa >=30
C.E.T X10-6 <=2.5























*Value might be changed due to material size

Typical property Data JC-500

Properties Test standard Unit Value
Average grain size   μm 10
Bulk density DIN IEC 60413/203 g/c㎡ 1.77
Open porosity DIN 66133 Vol.% 13
Medium pore size DIN 66133 μm 1.5
Permeability(air at 20℃) DIN 66133 C㎡/s 0.1
Rockwell hardness HR 10/100 DIN IEC 60413/303   70
Specific electrical resistivity DIN IEC 60413/402 μΩm 14
Flexural strength DIN IEC 60413/501 MPɑ 50
Compressive strength DIN 51910 MPɑ 120
Young's modulus DIN 51915 MPɑ 10.5*103
Thermal expansion(20-200℃) DIN 50909 k-1(C-1) 3.9*10-6
Thermal conductivity (20℃) DIN 51908 Wm-1k-1 80
Ash content DIN 51903 ppm **




















*Value might be changed due to material size
**Ash value according to purity specifications


Typical property Data JC-300
properties Unit Value
Bulk density g/cm3 1.79
Specific electrical resistivity μΩ-m 13
Young's modulus Gpa 9.8
Dielectric strength Mpa 39.2
Shore hardness   56
C.T.E X10-6 4.8
Conductivity for heat W/mk 104














*Value might be changed due to material size

Typical property Data JC-FE250
Property Unit Value
Bulk density g/cm3 1.75
Specific electrical resistivity µΩm 8
Max. grain size mm 0.8
Flexural strength Mpa 24.5
Shore hardness   35
C.T.E X10-6/°C 3.3
Thermal conductivity W/mk 174
Ash value ppm 15



























*Value might be changed due to material size





Graphite advantages:

Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient





Production environment:

24.5Mpa Graphite Rods 0

24.5Mpa Graphite Rods 1

24.5Mpa Graphite Rods 2

24.5Mpa Graphite Rods 3

24.5Mpa Graphite Rods 4

24.5Mpa Graphite Rods 5

24.5Mpa Graphite Rods 6

Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
