Product Details:
|
| Material: | Foreign Graphite | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box | Deliver Time: | 5-8 Work Days |
| Port: | Qingdao Port | Brand: | JC |
| High Light: | 1.85g cm3 Graphite Crucible,49Mpa crucible for melting silver,49Mpa Graphite Crucible |
||

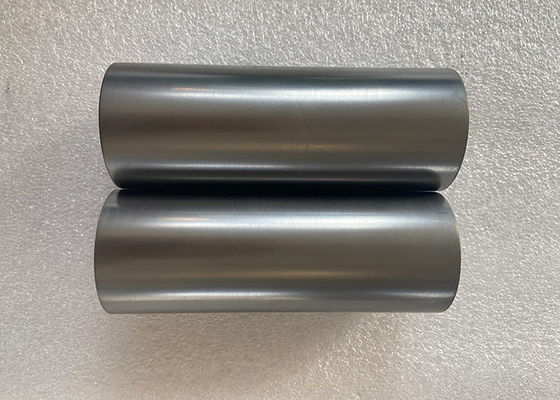

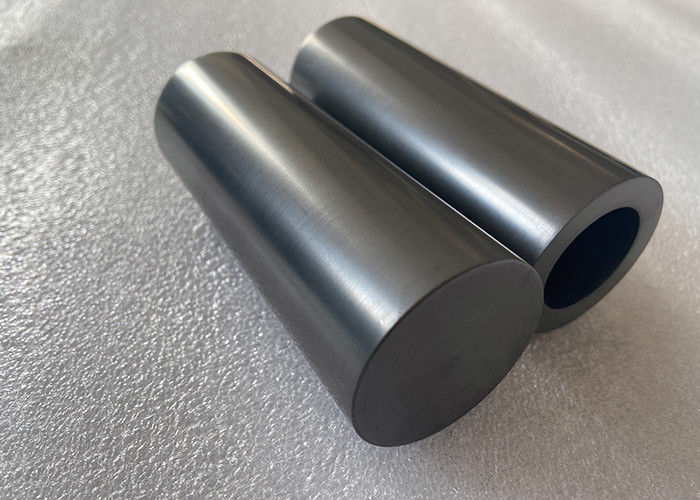

Customized High Temperature Carbon Graphite Moulds
Products details:
Customized Carbon Graphite Moulds performance:
1. Brass continuous casting mould
2. Red copper continuous casting mould
3. Continuous casting mould for jewelry of gold, silver, platinum, etc.
4. Steel and stainless steel continuous casting mould.
By the shape of the cast product, it is divided into round bar mould, hollow tube mould, and shaped mould.
Customized Carbon Graphite Moulds Materials:
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.
Production emvironment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
