Product Details:
|
| Material: | Graphite | Feature: | High Hardness |
|---|---|---|---|
| Application: | Casting & Plastic Injection Mould | Size: | Customized |
| Package: | Wooden Box And Vacuum Packing | Deliver Time: | 5-8 Work Days |
| High Light: | 1.83g Cm3 Pyrolytic Graphite Sheet,125Mpa carbon graphite vane,125Mpa Pyrolytic Graphite Sheet |
||

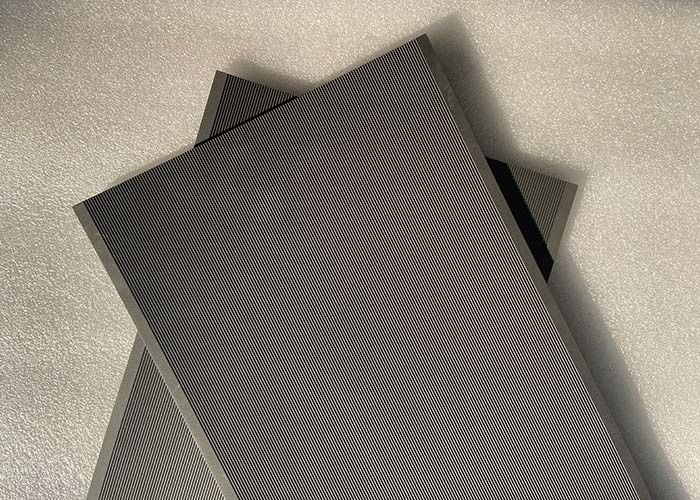

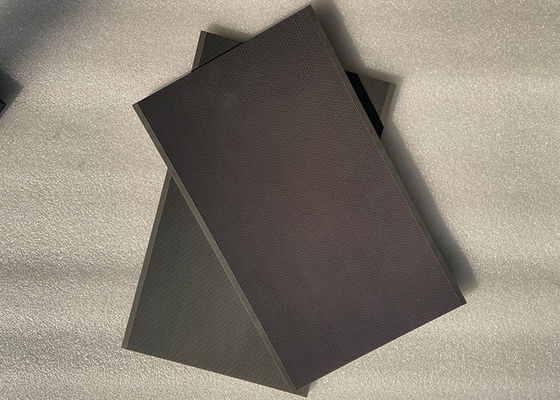

High Density High Purity Carbon Graphite Sheet Carbon Graphite Plate
Product details :
Graphite Plates that are widely used in the Glass & Jewellery, and Heating & Furnace industries. Graphite plates are often used for fuel cells, electrolysis, electroplating, and other various mechanical applications where friction, heat, or electrical properties are factors. They are tough and can withstand repeated wear and tear, apart from being good conductors of heat and electricity.
Characteristics of High Density High Purity Carbon Graphite Sheet Carbon Graphite Plate
1. The processing materials are ultrafine granule structure, high purity and graphite with high graphitization degree.
2. High hardness, good anti-oxidation performance and high machining accuracy
3. Good conductivity, high resistivity, sufficient mechanical strength
4. Small porosity and dense structure.
5. Excellent thermal shock resistance, conductive and thermal conductivity.
6. High temperature resistance, corrosion resistance, acid and alkali resistance, good wear resistance.
7. Surface can be treated with anti-oxidation.
High Density High Purity Carbon Graphite Sheet Carbon Graphite Plate Application:
Graphite materials used for mechanical automotive,electrical,petrochemical and machinery industries,to provide the necessary carbon graphite components;mainly used in dry rotary vane
compressors and vacuum pumps;rotary compressor,screw compressor,fan,and the radial axis with sealing ring and sealing rings;oil-free piston compressor sealed with graphite piston and rod guide ring;mechanical seals,axial end with ball valve seals;liquid medium transmission with graphite bearings,seals,combination seals,rotary vane,rotor and hub and so on.
High Density High Purity Carbon Graphite Sheet Carbon Graphite Plate Materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
