Product Details:
|
| Material: | Graphite C/C | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box | Deliver Time: | 5-8 Work Days |
| Port: | Qingdao Port | Brand: | JC |
| High Light: | 170Mpa CFC Materials,170Mpa carbon composite plates,Anti oxidation CFC Materials |
||

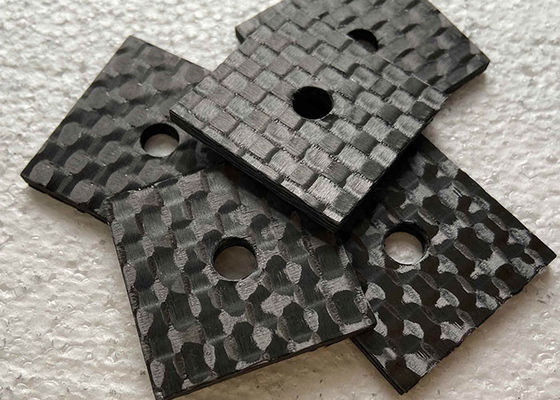

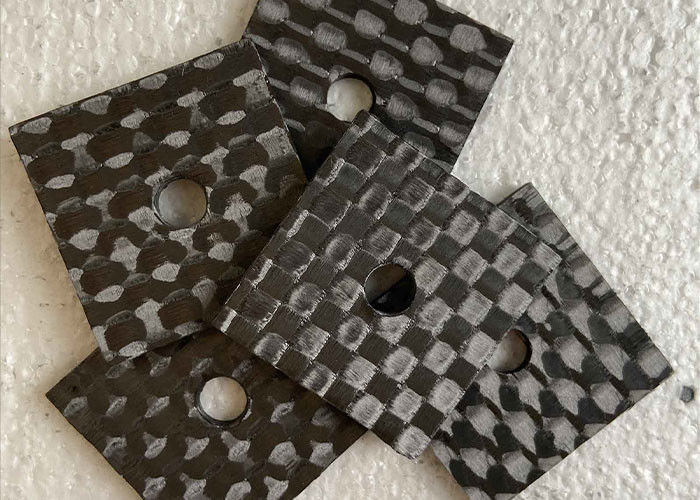

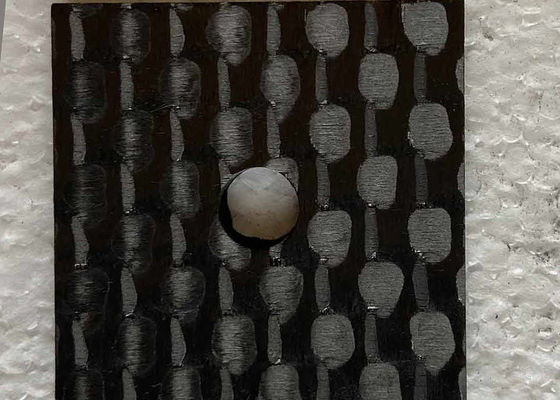

Customized CFC Plate C/C Material Carbon Graphite Plate
Product description:
We can machine various types of CFC Box according to customers' designs.
The carbon / carbon composites (C/C) is a material composed of high strength carbon fibers and carbonized base reinforced through a graphitization process. It can be widely used as various components, heaters and containers in high temperature environment. Compared with traditional engineering materials, C/C has the following advantages: High strength (5 times that of steel at high temperature), High temperature resistance ( maintaining excellent mechanical and electrical performance at 2,000 °C), Excellent thermal shock resistance, low thermal expansion coefficient, low thermal capacity, low density and excellent corrosion and radiation resistance.
Customized CFC Plate C/C Material Carbon Graphite Plate application:
Parts of CZ,Parts of high temperature furnace
Fastener or connect of high temperature furnace
Heater
All kinds of high-temperature container
Customized CFC Plate C/C Material Carbon Graphite Plate materials:
The carbon / carbon composites (C/C) is a material composed of high strength carbon fibers and carbonized base reinforced through a graphitization process. It can be widely used as various components, heaters and containers in high temperature environment.
| Characteristics | unit | JC-540 | JC-740 |
| Carbon fiber | - | short fiber | short fiber |
| Heat treatment | °C | 2000 | 2000 |
| Bulk density | g/cm3 | 1.6 | 1.6 |
| Flexural strength | Mpa | 170 | 170 |
| Flexural modulus | Gpa | 40 | 40 |
| Flexural modulus | Mpa | 150 | 190 |
| Flexural modulus | Gpa | 50 | 50 |
| Compressive strength | Mpa | 120// 120⊥ | 130// 190⊥ |
| Coeffeciency of thermal expansion | 10-6/º C | 1.4// 10.5⊥ | 0.9// 9.2⊥ |
| Thermal conductivity | W/m*k | 40// 10 ⊥ | 40// 10⊥ |
| Specific heat | J/Kg*k | 750(25ºC)1970(1300ºC) | 750(25ºC) |
| Porus | % | 18 | 18 |
* The given values are not authoritative , but are typical values from our experience.
Material and production-specific distribution is to be taken into account.
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
