Product Details:
|
| Material: | Molded Graphite | Type: | Composite Sheet |
|---|---|---|---|
| Thermal Conductivity: | Required | Application: | Metal Casting, Smelting, Sintering Furnaces |
| Grade: | Industrial Grade | Thickness: | Customers' Demand |
| Color: | Black | Product Name: | Graphite Plate |
| High Light: | 125Mpa carbon graphite sheet,hardness95 thermal graphite sheet,Sintering carbon graphite sheet |
||

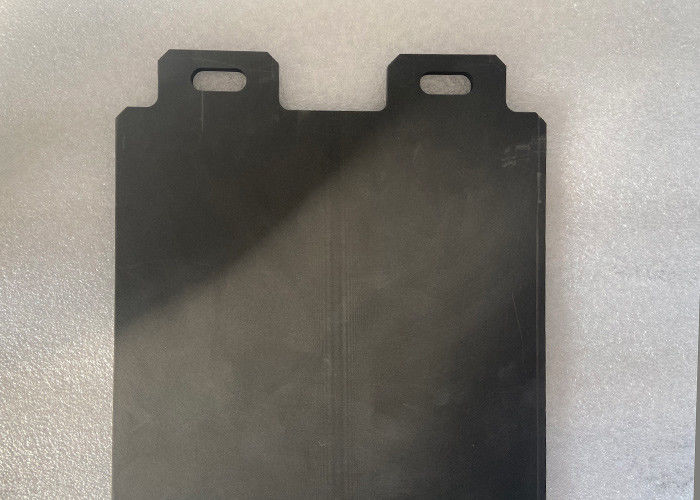

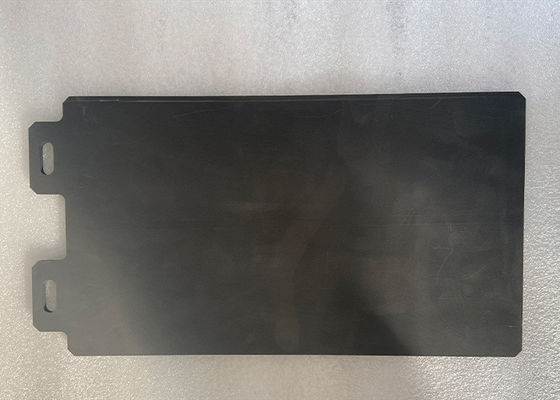

Graphite High Purity Carbon Graphite Plate For Sintering Industry
Production details :
High density graphite plate:
Graphite Plates that are widely used in the Glass & Jewellery, and Heating & Furnace industries.
Graphite plates are often used for fuel cells, electrolysis, electroplating, and other various mechanical applications where friction, heat, or electrical properties are factors. They are tough and can withstand repeated wear and tear, apart from being good conductors of heat and electricity.
Graphite High Purity Carbon Graphite Plate For Sintering Industry Performance advantage:
1. High density and high temperature resistance
2. High mechanical strength
3. Oxidization retardent treatment availible
4. Long service life
5. Machined as your design
6. corrosion resistance
7. good thermal shock resistance ,
8. good electric and thermal conductivity
Graphite High Purity Carbon Graphite Plate For Sintering Industry Materials :
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
**Ash value according to purity specifications
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
